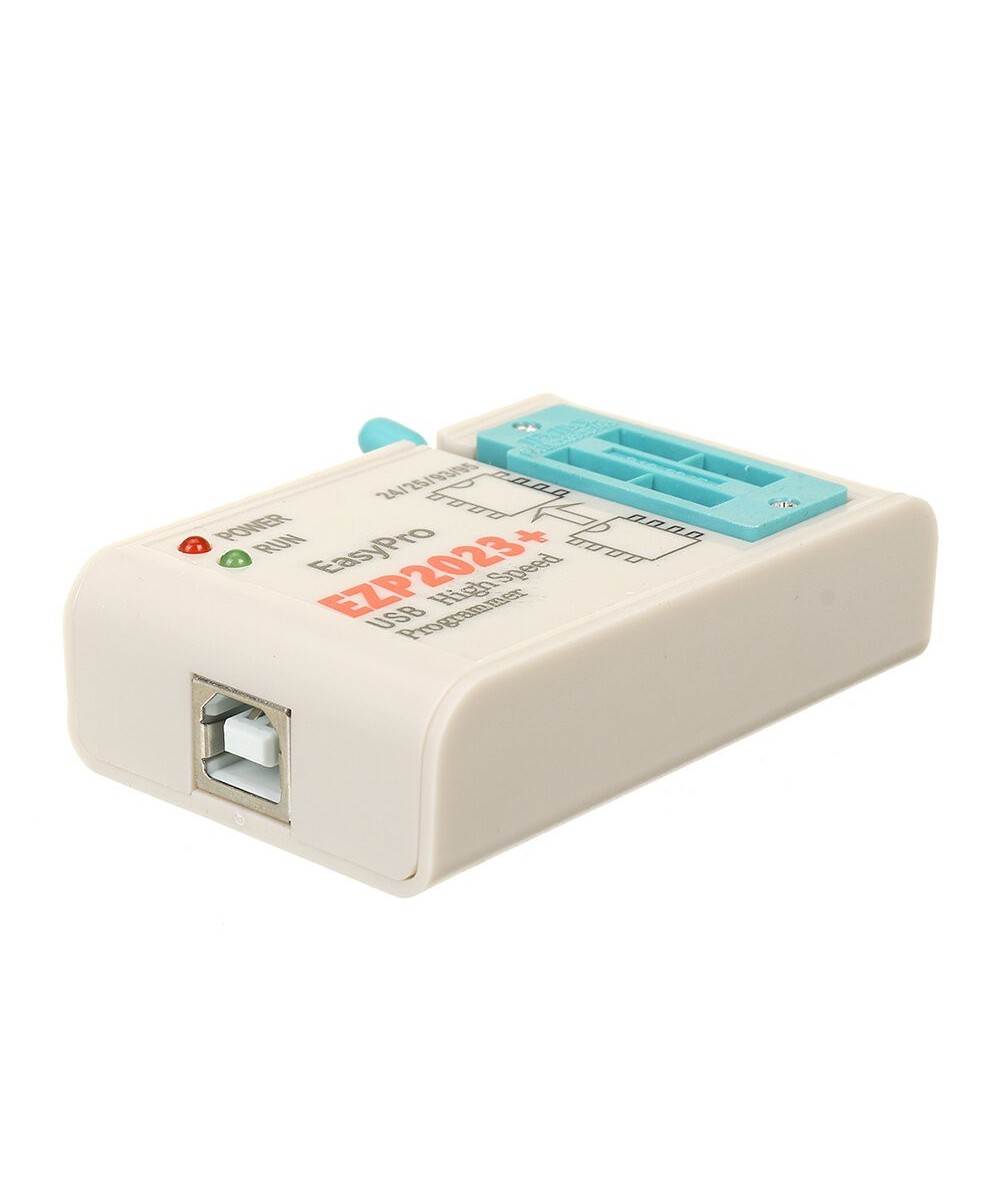

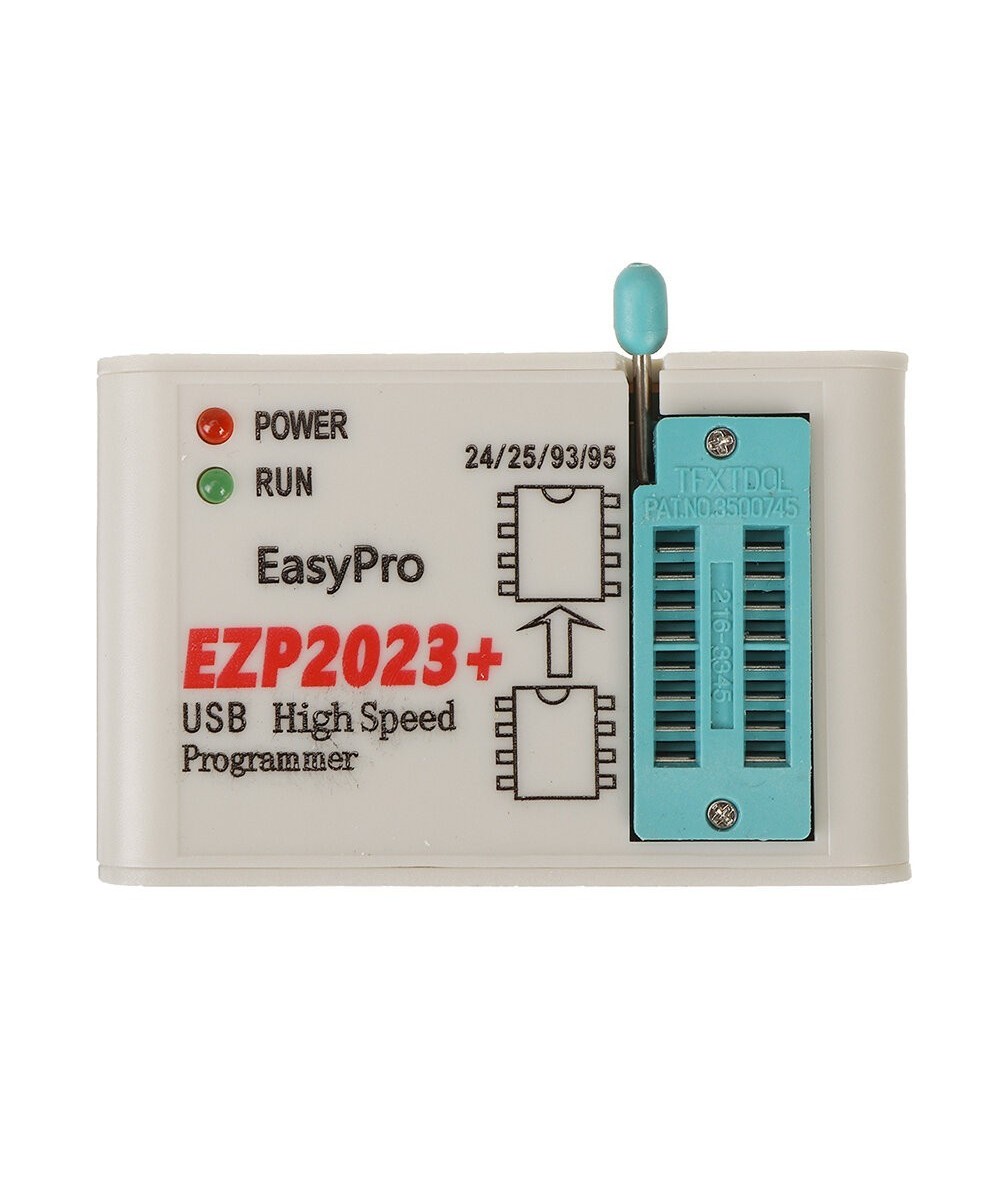

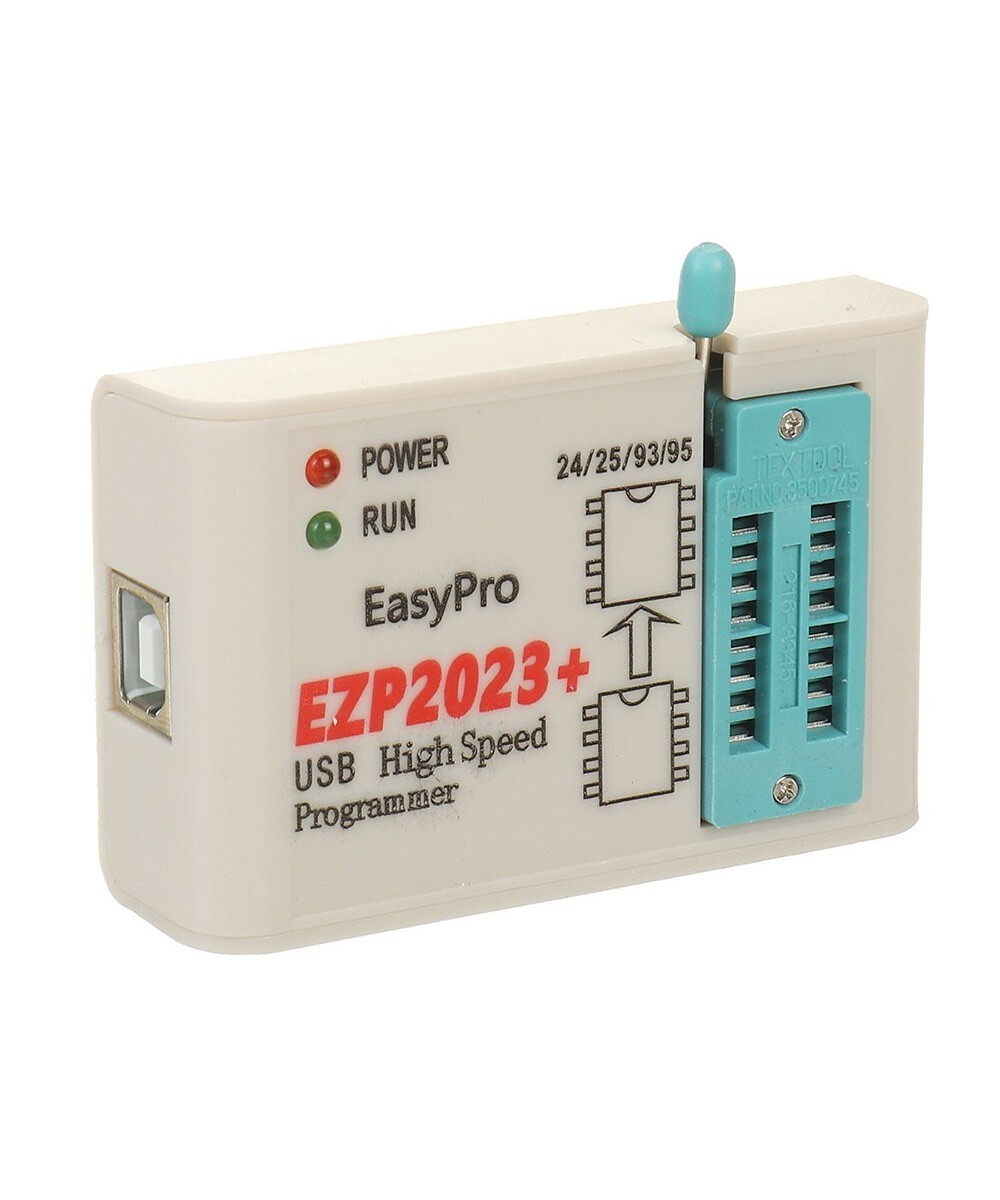

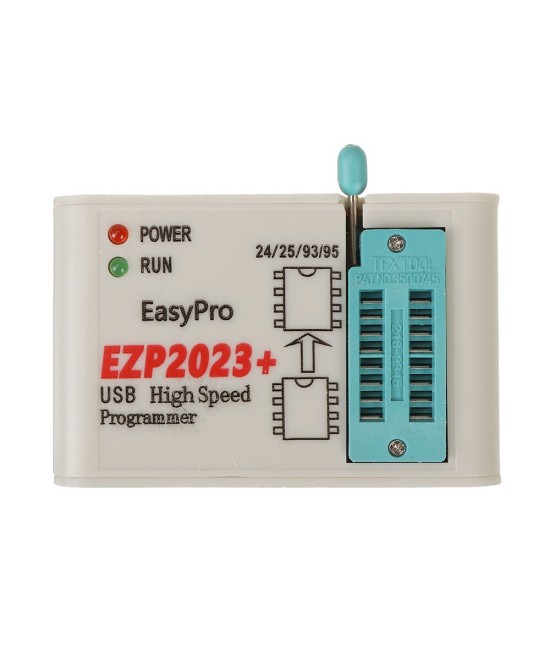

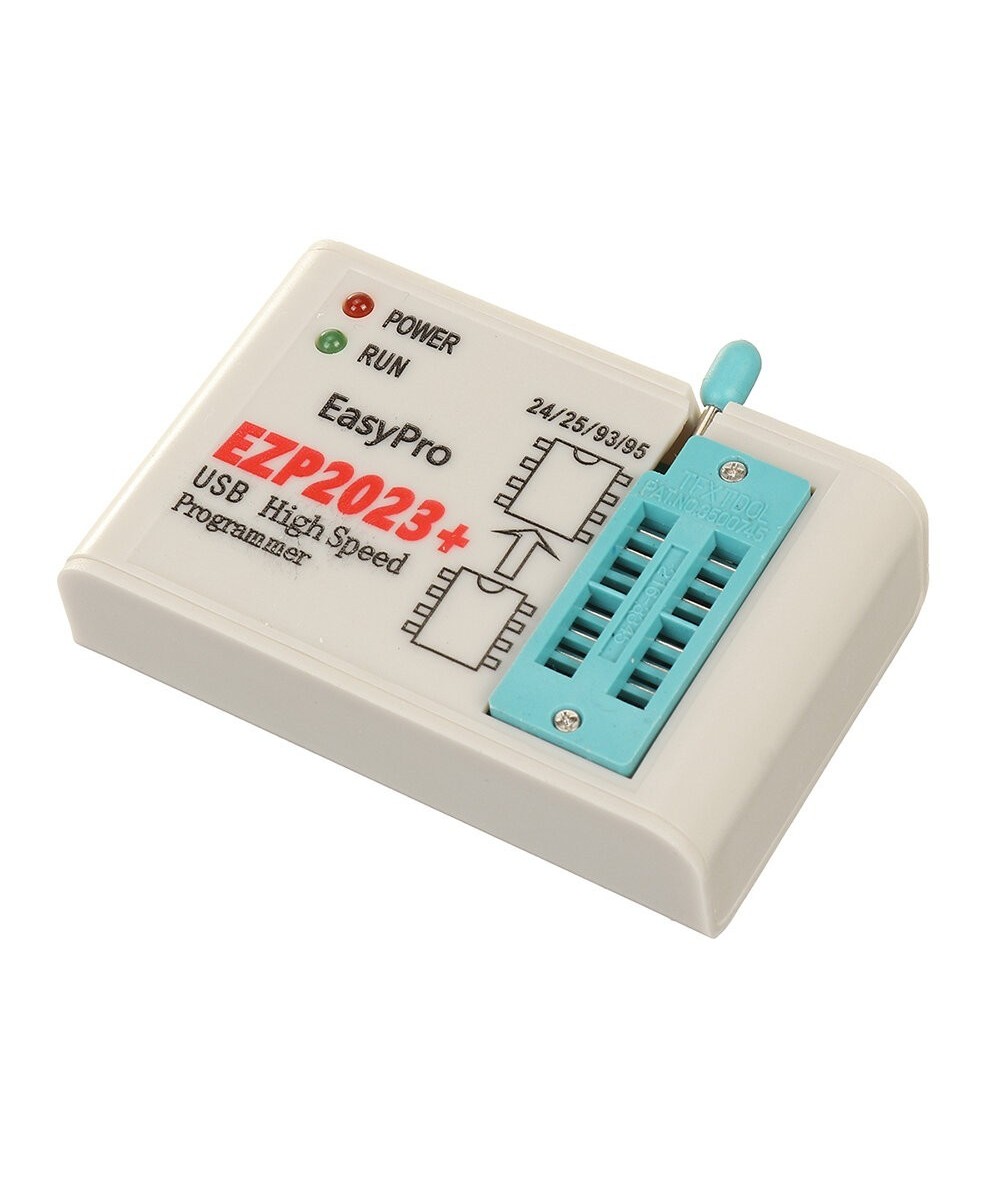

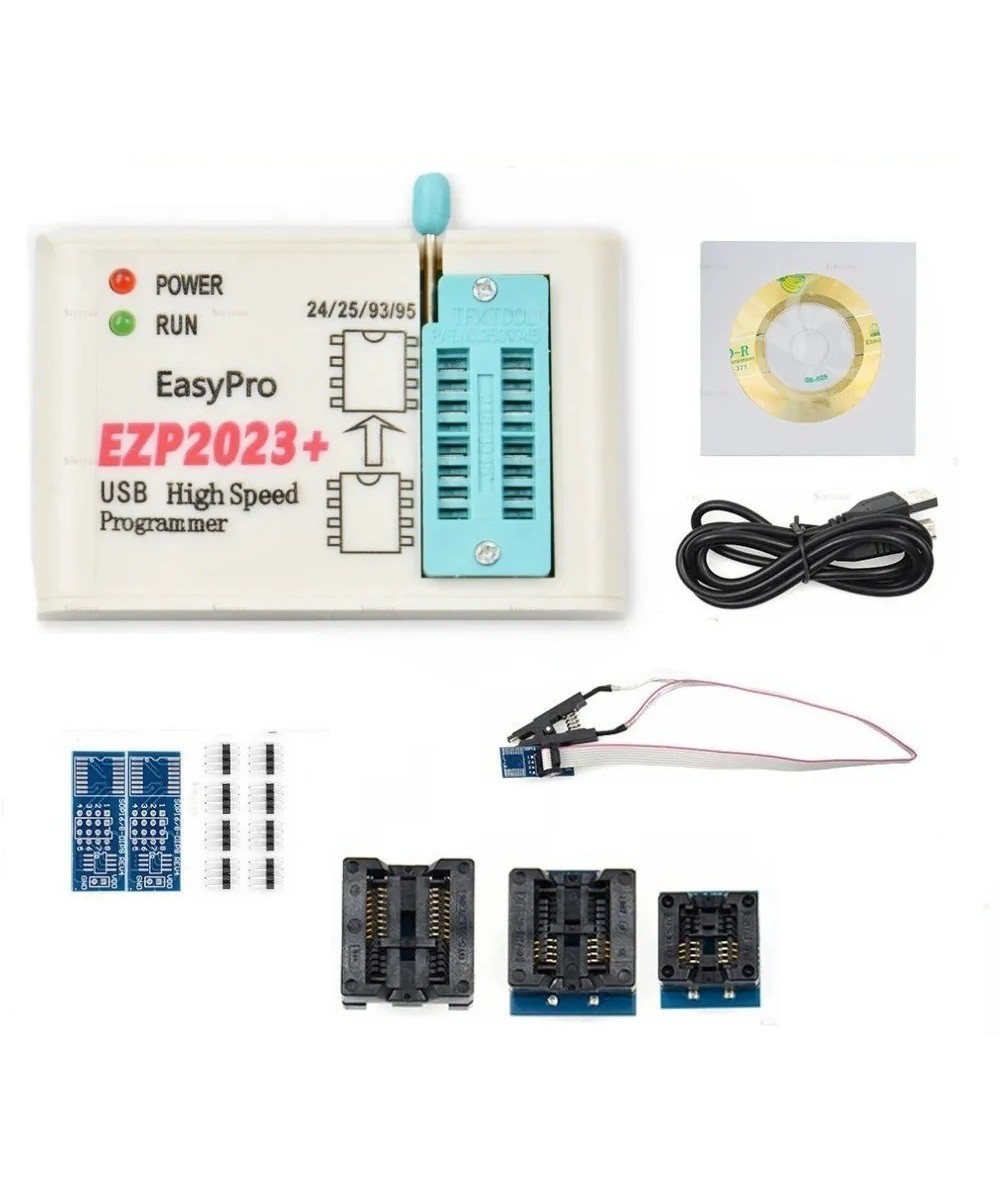

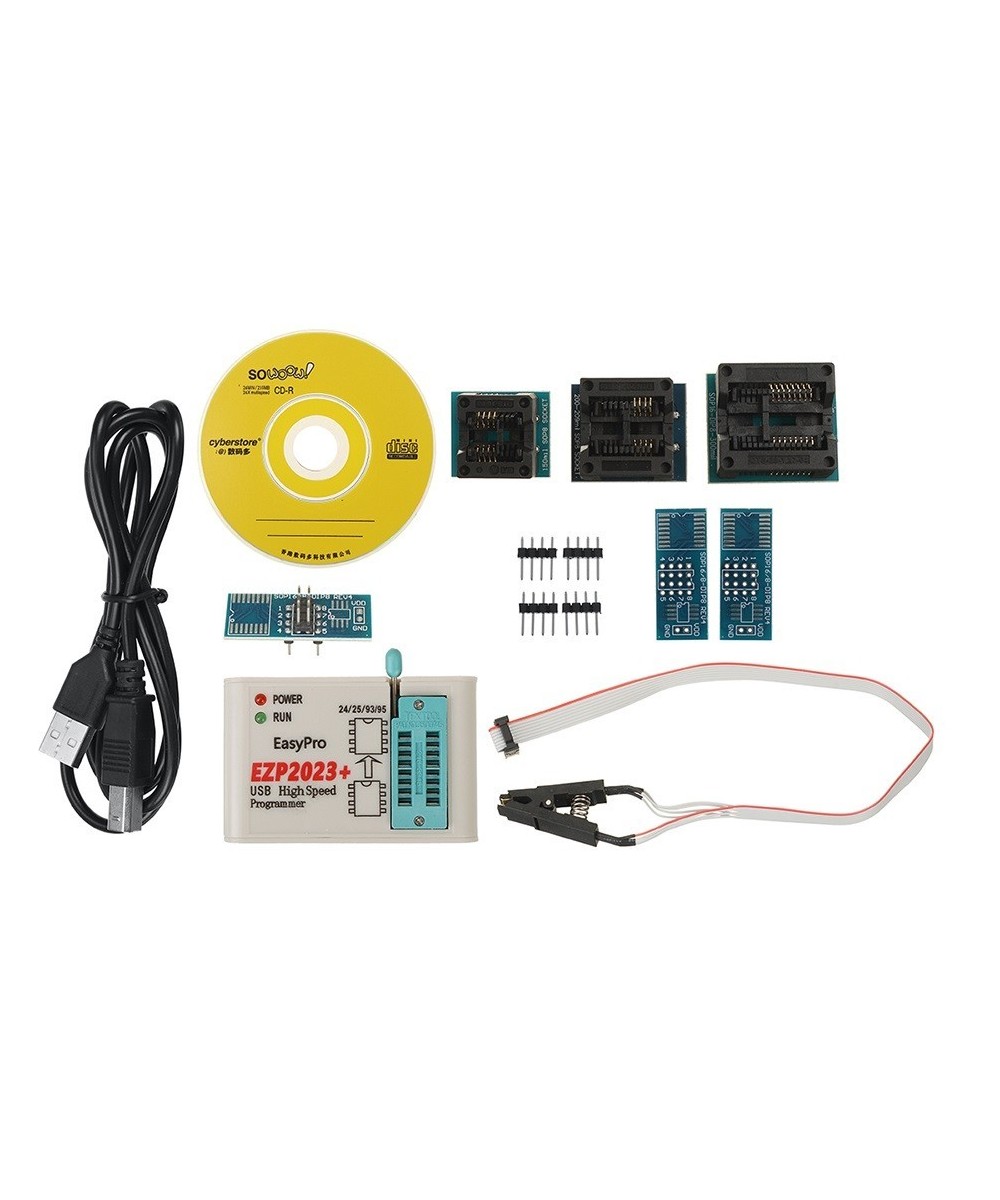

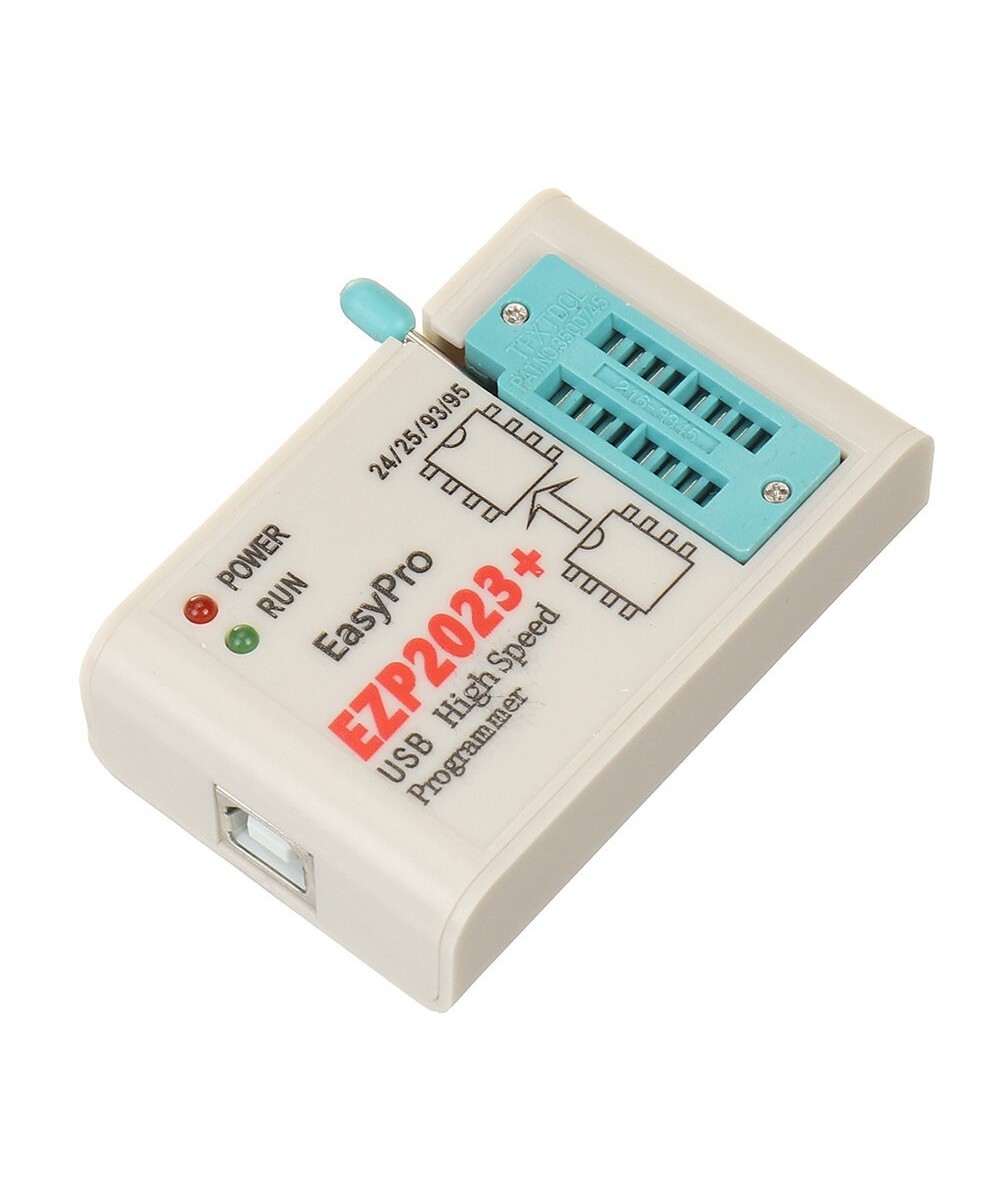

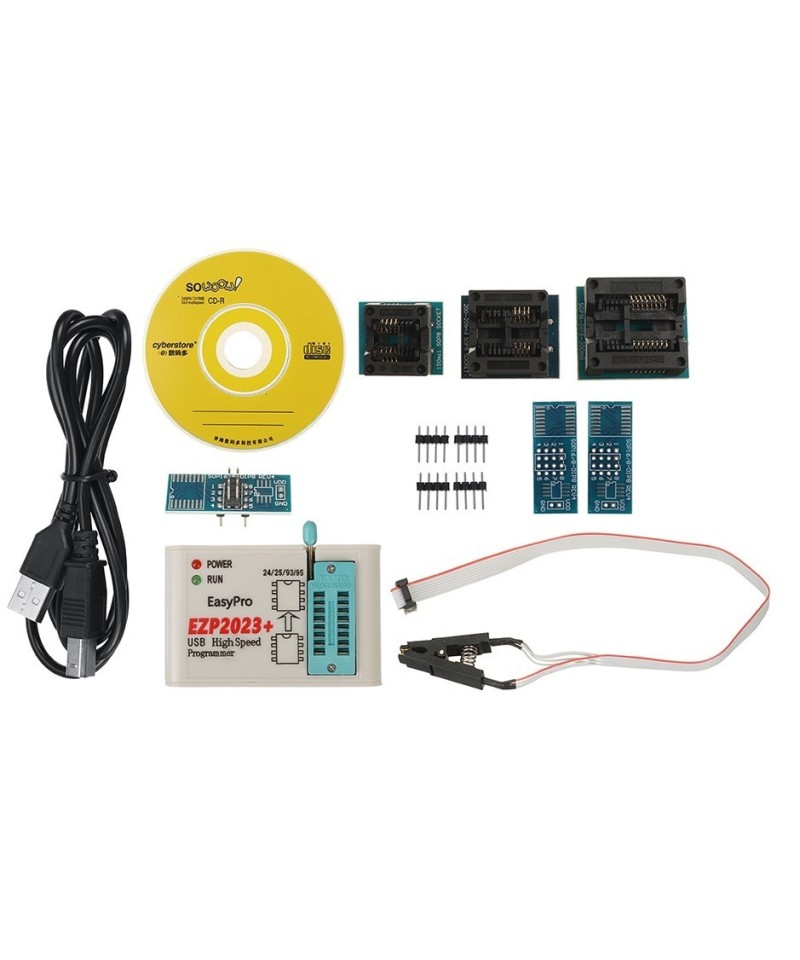

Programador de Memorias EEPROM USB EZP2023+

Descripción:

1. Reparación de electrodomésticos: adecuado para la industria de reparación de electrodomésticos para flashear chips de memoria en televisores a color, DVD, placas base de computadora y discos duros.

2. Investigación y desarrollo del producto: el chip de prueba se programa durante el proceso de investigación y desarrollo del producto de la empresa.

3. Producción en masa de fábrica: la función de copia fuera de línea completamente automática es especialmente adecuada para la grabación por lotes de chips de memoria en la fábrica.

Características:

1. Interfaz USB 2.0, velocidad de hasta 12 Mbps.

2. La velocidad de lectura y escritura es súper rápida. Solo toma 3 segundos leer EN25T80 y 9 segundos escribir EN25T80. Actualmente es el programador de chips BIOS más rápido del mercado.

3. Reconoce automáticamente el modelo de chip.

4. Detecta automáticamente si el chip está colocado correctamente.

5. Selecciona automáticamente el voltaje de la fuente de alimentación del chip.

6. Copia automática fuera de línea.

7. Admite software de PC y actualización de firmware del programador.

8. Totalmente compatible con 25 FLASH, 24 EEPROM, 25 EEPROM, 93 EEPROM y otras series de chips de memoria.

9. La apariencia es pequeña y fácil de transportar, aproximadamente del mismo tamaño que una tarjeta de presentación normal.

10. Peso: 115 gramos

Lista de modelos de chips compatibles:

Admite chips de la serie 24, 25, 93 de casi todos los fabricantes del mercado.

*************************************** FLASH 25 SPI********* *******************************

AMIC: A25L05P, A25L512, A25L010, A25L10P, A25L020, A25L20P, A25L040, A25L40P, A25L080, A25L80P, A25L016, A25L16P, A25L032

ATMEL@: AT25F512, AT25F512A, AT25F512B, AT25F1024, AT25F1024A, AT25FS010, AT25DF021, AT25F2048, AT25DF041A, AT25F4096, AT25FS040, AT26F004, AT26DF081A, AT25DF161, AT26DF321, AT26DF321, AT26DF321, AT25DF321, AT26DF161A, AT25DF321

EON: EN25F05, EN25LF05, EN25P05, EN25D10, EN25F10, EN25LF10, EN25P10, EN25D20, EN25F20, EN25LF20, EN25D40, EN25F40, EN25LF40, EN25D80, EN25F80, EN25Q80, EN25T80, EN25B16, EN25B, EN25B16, EN25B16, EN25B16 EN25B32T, EN25F32, EN25P32 , EN25Q32, EN25B64, EN25B64T, EN25F64, EN25P64, EN25Q64, EN25F128, EN25Q128

ES: ES25P10, ES25P20, ES25M40, ES25M40A, ES25P40, ES25M80, ES25M80A, ES25P80, ES25M16, ES25M16A, ES25P16, ES25P32

ESMT: F25L004A, F25L04UA, F25L008A, F25L08PA, F25L016A, F25L16PA, F25L32PA, F25L32QA

MXIC: MX25L512... MX25V512... MX25L1005... MX25L2005... MX25L4005A... MX25V4005... MX25L8005... MX25V8005... MX25L1605D... MX25L1635D... MX25L3205D... MX25L3225D... MX25D MXL3205D...

NEXFLASH: NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32

PMC: PM25LV512A, PM25LV010A, PM25LV020, PM25LV040, PM25LV080B, PM25LV016B

SAIFUN: SA25F005, SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320

ESPAÑOL: S25FL004A, S25FL008A, S25FL016A, S25FL032A, S25FL064A

Acero inoxidable: SST25VF512, SST25VF512A, SST25VF010, SST25VF010A, SST25VF020, SST25VF020A, SST25VF040, SST25VF040A, SST25VF040B, SST25VF080B, SST25VF616B, SST2B5VST03ST25VST03ST25VST03

ST: M25P05A, M25P10A, M25PE10, M25P20, M25PE20, M25P40, M25PE40, M25P80, M25PE80, M25PX80, M25P16, M25PE16, M25PX16, M25P32, M25PX32, M25P64, M25PX628, M25P64

WINBOND: W25P10, W25X10, W25X10A, W25X10AL, W25X10L, W25P20, W25X20, W25X20A, W25X20AL, W25X20L, W25P40, W25X40, W25X40A, W25X40AL, W25X40L, W25X20, W25X20, W25X20, W25X20

**************************************** 24 EEPROM****** ***********************************

ATMEL@: AT24C01, AT24C01A, AT24C01B, AT24C02, AT24C02A, AT24C02B, AT24C04, AT24C04A, AT24C04B, AT24C08, AT24C08A, AT24C08B, AT24C16, AT24C16A, AT24C24B, AT24C64, AT24C24B, AT24C128, AT24C24A AT24C256, AT24C256A, AT24C256B, AT24C512, AT24C512A, AT24C512B, AT24C1024, AT24C1024A, AT24C1024B

CATALIZADOR@: CAT24C01, CAT24WC01, CAT24C02, CAT24WC02, CAT24C04, CAT24WC04, CAT24C08, CAT24WC08, CAT24C16, CAT24WC16, CAT24C32, CAT24WC32, CAT24C64, CAT24WC64, CAT24C128, CAT24WC, 512, 84WC2, CAT24WC2, CAT24WC16

Común: 24C00 3V, 24C00 5V, 24C01 3V, 24C01 5V, 24C02 3V, 24C02 5V, 24C04 3V, 24C04 5V, 24C08 3V, 24C08 5V, 24C16 3V, 24C16 5V, 24C32 3V, 24C32 5V, 24C64 3V, 24C64 4 3V, 24C128 5V, 24C256 3V, 24C256 5V, 24C512 3V, 24C512 5V, 24C1024 3V, 24C1024 5V

FAIRCHILD: FM24C01L, FM24C02L, FM24C03L, FM24C04L, FM24C05L, FM24C08L, FM24C09L, FM24C16L, FM24C17L, FM24C32L, FM24C64L, FM24C128L, FM24C512L, FM24C512L, FM24C512

HOLTEK: HT24C01, HT24LC01, HT24C02, HT24LC02, HT24C04, HT24LC04, HT24C08, HT24LC08, HT24C16, HT24LC16, HT24C32, HT24LC32, HT24C64, HT24LC64, HT24LC128, HT24C24C256, HT24LC128, HT24LC128

ISSI: IS24C01, IS24C02, IS24C04, IS24C08, IS24C16, IS24C32, IS24C64, IS24C128, IS24C256, IS24C512, IS24C1024

MICROCHIP: 24AA00, 24C00, 24LC00, 24AA01, 24AA014, 24C01C, 24LC014, 24LC01B, 24AA02, 24LC02B, 24AA024, 24AA025, 24AA04, 24C02C, 24LC024, 24LC025, 24LC04B, 24AA08, 24LC08B, 24AA16, 24AA64, 24LC32, 24AA64, 24LC 24FC64 , 24LC64, 24AA128, 24FC128, 24LC128, 24AA256, 24FC256, 24LC256, 24AA512, 24FC512, 24LC512, 24AA1024

NSC: NSC24C02, NSC24C02L, NSC24C64

RAMTRON: FM24C04A, FM24CL04, FM24C16A, FM24CL16, FM24C64, FM24CL64, FM24C256, FM24CL256, FM24C512

ROHM: BR24C01, BR24L01, BR24C02, BR24L02, BR24C04, BR24L04, BR24C08, BR24L08, BR24C16, BR24L16, BR24C32, BR24L32, BR24C64, BR24L64

ST: ST24C01, ST24C02, ST24C04, ST24C08, ST24C16, ST24C32, ST24C64

XICOR: X24C01, X24C02, X24C04, X24C08, X24C16

**************************************** 93 EEPROM******* ***********************************

AKM: AK93C45AV, AK93C55AV, AK93C65AV, AK93C75AV

ATC: ATC93C46, ATC93LC46 (16 bits), ATC93LC46 (16 bits)-SOP8, ATC93LC46 (8 bits), ATC93LC46 (8 bits)-SOP8, ATC93C56, ATC93LC56 (16 bits), ATC93LC56 (16 bits)-SOP8, ATC93LC56 (8 bits), ATC93LC56 (8 bits) )-SOP8, ATC93C66, ATC93LC66 (16 bits), ATC93LC66 (16 bits)-SOP8, ATC93LC66 (8 bits), ATC93LC66 (8 bits)-SOP8

ATMEL@: AT93C46(16bit), AT93C46(16bit)-SOP8, AT93C46(8bit), AT93C46(8bit)-SOP8, AT93C46A, AT93C56(16bit), AT93C56(16bit)-SOP8, AT93C56(8bit), AT93C56(8bit) -SOP8, AT93C57 (16 bits), AT93C57 (16 bits)-SOP8, AT93C57 (8 bits), AT93C57 (8 bits)-SOP8, AT93C66 (16 bits), AT93C66 (16 bits)-SOP8, AT93C66 (8 bits), AT93C66 (8 bits)-SOP8 , AT93C86 (16 bits), AT93C86 (16 bits)-SOP8, AT93C86 (8 bits), AT93C86 (8 bits)-SOP8

CATALIZADOR @: CAT93C46 (16 bits), CAT93C46 (8 bits), CAT93C46A, CAT93C46I, CAT93C56 (16 bits), CAT93C56 (8 bits), CAT93C56A, CAT93C57 (16 bits), CAT93C57 (16 bits) -SOP8, CAT93C66 (16 bits), CAT93C66 (8 bits) , CAT93C66A, CAT93C86 (16 bits), CAT93C86 (8 bits)

COMÚN: 93C46 (16 bits), 93C46 (8 bits), 93C56 (16 bits), 93C56 (8 bits), 93C66 (16 bits), 93C66 (8 bits), 93C86 (16 bits), 93C86 (8 bits)

EXEL: XL93C06, XL93C46, XL93CS46, XL93LC46, XL93C56, XL93LC56, XL93C66, XL93LC66

FAIRCHILD: FM93C06AM8 (16 bits), FM93C06AM8 (8 bits), FM93C06M8, FM93C06N, FM93C46AM8 (16 bits), FM93C46AM8 (8 bits), FM93C46AN (16 bits), FM93C46AN (8 bits), FM93CS46 (16 bits), FM93C56AN (16 bits), FM93C56AN (16 bits) , FM93CS56 (16 bits), FM93C66AM8 (16 bits), FM93C66AM8 (8 bits), FM93C66AN (16 bits), FM93C66AN (8 bits), FM93C66B, FM93C66M8 (16 bits), FM93C66MT8 (16 bits), FM93C66N (16 bits), FM93CS66 (16 bits), FM93C86AM8 ( 16 bits), FM93C86AM8 (8 bits), FM93C86AN (16 bits), FM93C86AN (8 bits)

HOLTEK: HT93LC46A (16 bits), HT93LC46A (8 bits), HT93LC56A (16 bits), HT93LC56A (8 bits), HT93LC66A (16 bits), HT93LC66A (8 bits)

TIC: ICT93C46 (16 bits), ICT93C46 (8 bits), ICT93C56 (16 bits), ICT93C56 (8 bits), ICT93C66 (16 bits), ICT93C66 (8 bits)

ISSI: IS93C46 (16 bits), IS93C56 (16 bits), IS93C66 (16 bits)

MICROCHIP: 93C06(16bit), 93C06(16bit)-SOP8, 93AA46(16bit), 93AA46(8bit), 93AA46(8bit)-SOP8, 93C46(16bit), 93C46(16bit)-SOP8, 93C46A, 93C46B, 93LC46(16bit ), 93LC46(16bit)-SOP8, 93LC46(8bit), 93LC46(8bit)-SOP8, 93LC46A, 93LC46B, 93LC46B-SOP8, 93AA56(16bit), 93AA56(8bit), 93AA56(8bit)-SOP8, 93C56(16bit) , 93C56(16bit)-SOP8, 93C56(8bit), 93C56(8bit)-SOP8, 93C56A, 93C56A-SOP8, 93C56B, 93C56B-SOP8, 93LC56(16bit), 93LC56(16bit)-SOP8, 93LC56(8bit), 93LC56 (8 bits) -SOP8, 93LC56A, 93LC56B, 93LC56B-SOP8, 93AA66 (16 bits), 93AA66 (8 bits), 93AA66 (8 bits) -SOP8, 93C66 (16 bits), 93C66 (16 bits) -SOP8, 93C66 (8 bits), 93C66 ( 8 bits)-SOP8, 93C66A, 93C66A-SOP8, 93C66B, 93C66B-SOP8, 93LC66 (16 bits), 93LC66 (16 bits)-SOP8, 93LC66 (8 bits), 93LC66 (8 bits)-SOP8, 93LC66A, 93LC66B, 93LC666B-SOP8 (16 bits), 93AA76 (8 bits), 93C76 (16 bits), 93C76 (8 bits), 93LC76 (16 bits), 93LC76 (8 bits), 93LC76A, 93LC76B, 93AA86 (16 bits), 93AA86 (8 bits), 93C86 (16 bits), 93C86 ( 8 bits), 93LC86 (16 bits), 93LC86 (8 bits), 93LC86A, 93LC86B

NSC:NSC93C06, NSC93C06-SOP8, NSC93CS06, NSC93C46, NSC93CS46, NSC93C56, NSC93CS56, NSC93S56, NSC93C66, NSC93CS66, NSC93C86

ROHM: BR93LC46, BR93LC46RF, BR93LC56, BR93LC56RF, BR93LC66, BR93LC66RF

ST: ST93C06, M93S46, M93S46-SOP8, M93S46-T8, M93S46R, M93S46R-SOP8, M93S46W, M93S46W-SOP8, ST93C46, M93S56, M93S56-SOP8, M93S56R M93S66-SOP8, M93S66R, M93S66R-SOP8, M93S66W, M93S66W-SOP8, ST93C66

**************************************** 25 EEPROM******* ****************************************

ATMEL@: AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT25256, AT25512

CATALYST@: CAT25C01, CAT25C01P, CAT25C01S, CAT25C01U, CAT25C02P, CAT25C02S, CAT25C02U, CAT25C03P, CAT25C03S, CAT25C03U, CAT25C04P, CAT25C04S, CAT25C04U, CAT25C05P, CAT25C05S, CAT25C05U, CAT25C08P, CAT25C08S, CAT25C08U, CAT25C09P, CAT25C09S, CAT25C09U, CAT25C16P, CAT25C16S , CAT25C16U, CAT25C17P, CAT25C17S, CAT25C17U, CAT25C32P, CAT25C32S, CAT25C33P, CAT25C33S, CAT25C64P, CAT25C64S, CAT25C65P, CAT25C65S, CAT25C128P, CAT25C128S, CAT25C5C256P56S, CAT2

COMÚN: 25010, 25020, 25040, 25080, 25160, 25320, 25640, 25128, 25256, 25512

MICROCHIP: 25AA040, 25C040, 25LC040, 25AA080, 25C080, 25LC080, 25AA160, 25C160, 25LC160, 25AA320, 25C320, 25LC320, 25AA640, 25C640, 25LC640

RAMTRON: FM25C160, FM25640, FM25CL64

ST: ST25C01, ST25W01, ST25C02, ST25W02, ST25C04, ST25W04, ST25C08, ST25W08, ST25C16, ST25W16

TI: TI2532, TI2532A, TI2564

XICOR: XC25010, XC25020, XC25040, XC25080, XC25160, XC25320, XC25640, XC25128, XC25256, XC25512
